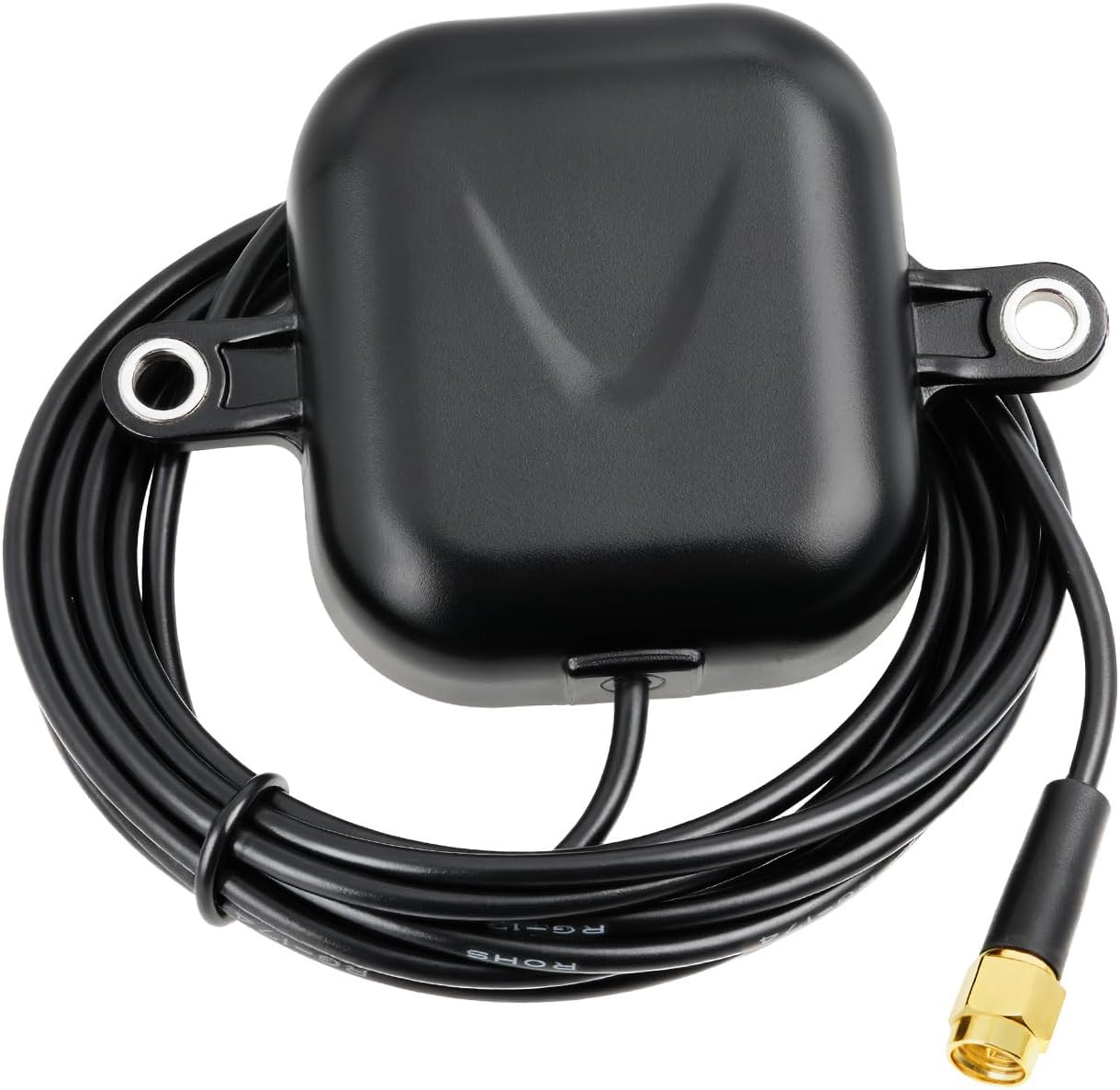

Bingfu Active GPS + BD Dual System Car Navigation SMA Antenna 28dB Gain Satellite Positioning Antenna with RG174 10 ft Cable for Vehicles

Specification: BeiDou: 1561.098±2.046MHz GPS: 1575.42±1.023MHz Bandwidth: >5MHz Gain: 4.5dBic (zenith-mounted) VSWR: ≤2.0 Polarization: Right-Hand Circular (RHCP) LNA Specifications: Gain: 28dB Noise Figure: <1.5dB Operating Voltage: 3.0-3.6V DC Current Consumption: ≤30mA @3.3V Mechanical & Environmental: Dimensions: 87*60*15mm (optimized for horizontal mounting) Cable: RG174, 10ft Connector:SMA male Operating Temperature: -40°C to +85°C Storage Temperature: -40°C to +90°C Certifications & Compliance: RoHS compliant IP65 waterproof rating Vibration resistant (sine sweep 10-50Hz) Applications: Automotive fleet management IoT asset tracking devices Industrial equipment monitoring Marine navigation systems Packing List:1 x Combination Antenna

• Stable Navigation: Experience satellite tracking with simultaneous BeiDou and GPS reception; Supports 1561 MHz BD and 1575 MHz GPS frequencies for stable navigation
• Enhanced Signal:​High gain amplifier and ultra low noise design significantly boost weak satellite signals; Ensures quick location fixes and consistent connection
• All Weather Design:​Built tough for your adventures with waterproof enclosure rated IP65; Performs flawlessly from scorching heat 85 degrees C down to freezing cold minus 40 degrees C
• Easy Plug and Play Setup:​Install instantly using the included long 10 ft RG174 cable with SMA male connector; Low power draw under 30 mA at 3.3 V means hassle free integration with your navigation device
• Optimized For Vehicle Use:​Horizontally mounted antenna design delivers excellent satellite signal reception; Superior build quality with vibration resistance ensures long lasting performance on any road
