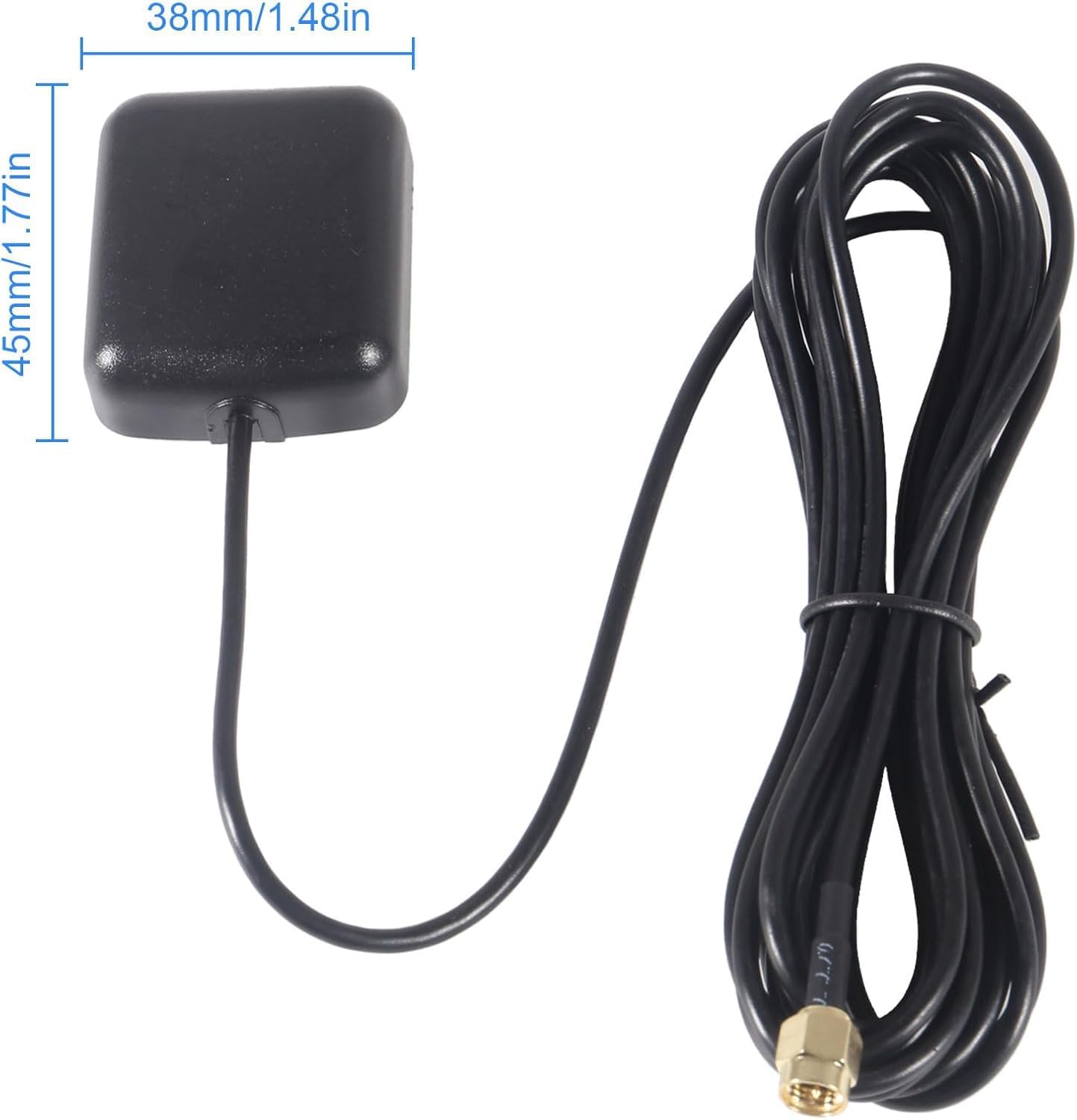

10FT GPS Navigation Antenna with SMA Male Connector Vehicle Waterproof Active GPS Antenna for Car Stereo Head Unit GPS Navigation System Module Truck Marine Boat GPS Tracker

Product Description Specifications: Center Frequency: 1575.42±1MHz Band Width: CF±5MHz Gain: 2dBic（Zenith） V.S.W.R.: SAW Ground Plane＜1.5 Gain: 28±2dB Noise Figure＜1.5 Filter Insertion Loss＜3dB Ex-band Attenuation： 12dB@CF+50MHz/16dB@CF-50MHz Supply Voltage： 2.2~5V DC Current Consumption： 5~15mA V.S.W.R＜2.0Package Includes: SMA Male Plug Connector

• GPS Antenna SMA Plug Connector GPS Active Aerial with 3M Antenna Extension Cable
• Working Frequency: GPS 1575.42MHz ±3 MHz; LNA Gain: 28dB; Cable Length: 3m; Connector: SMA Male Connector
• Power Supply DC Voltage: 3V to 5V; Power Supply DC Current: 10mA Max; Feature: Magnetic Mounting, Adhesive Mount
• Cable is double-shielded, low-loss and very flexible. The cable-type is equivalent or better than LMR-100: Coax with black jacket has the same or better signal-loss-per-meter and flexibility as LMR100, and less attenuation (signal loss) than RG174. The higher quality of the cable of this antenna translates into lower loss/better performance. These antenna cables are rated for outdoor use and are also suitable for indoor use. Recommended tightest continuous bend radius is 1.1 inch (28mm)
• Application: GPS Antenna Widely Used for Vehicle Telematics; 4G LTE GPS Tracker Locator; Vehicle Real Time Tracking Mobile DVR Video Recorder; Bus Truck RV Van Security Alarm System; Vehicle Amateur Radio Mobile Radio,GPS Antenna SMA Plug Connector GPS Active Aerial Compatiable with Automotive Navigation, Personal Positioning, Fleet Management, Marine Navigation
